How‑To: Keep a Refrigerator Cold When Its Temperature Sensors Go Bad (YoLink)

Why you might need this

Some refrigerators develop failed temperature sensors. When that happens, the control board stops regulating cooling—even though your setpoint is correct. A quick power off → wait → power on often restores normal cooling, but you may not notice the warm-up until food safety is at risk.

Goal: Detect door-left-open and temperature drift early, alert the household, and automatically reset power using a smart outlet only if temperature exceeds your limit.

What you’ll use

YoLink X3 Hub (Gateway)

Central hub for all YoLink devices (LoRa, long range). You’ll also add a SpeakerHub for voice alerts.

YoLink store Amazon

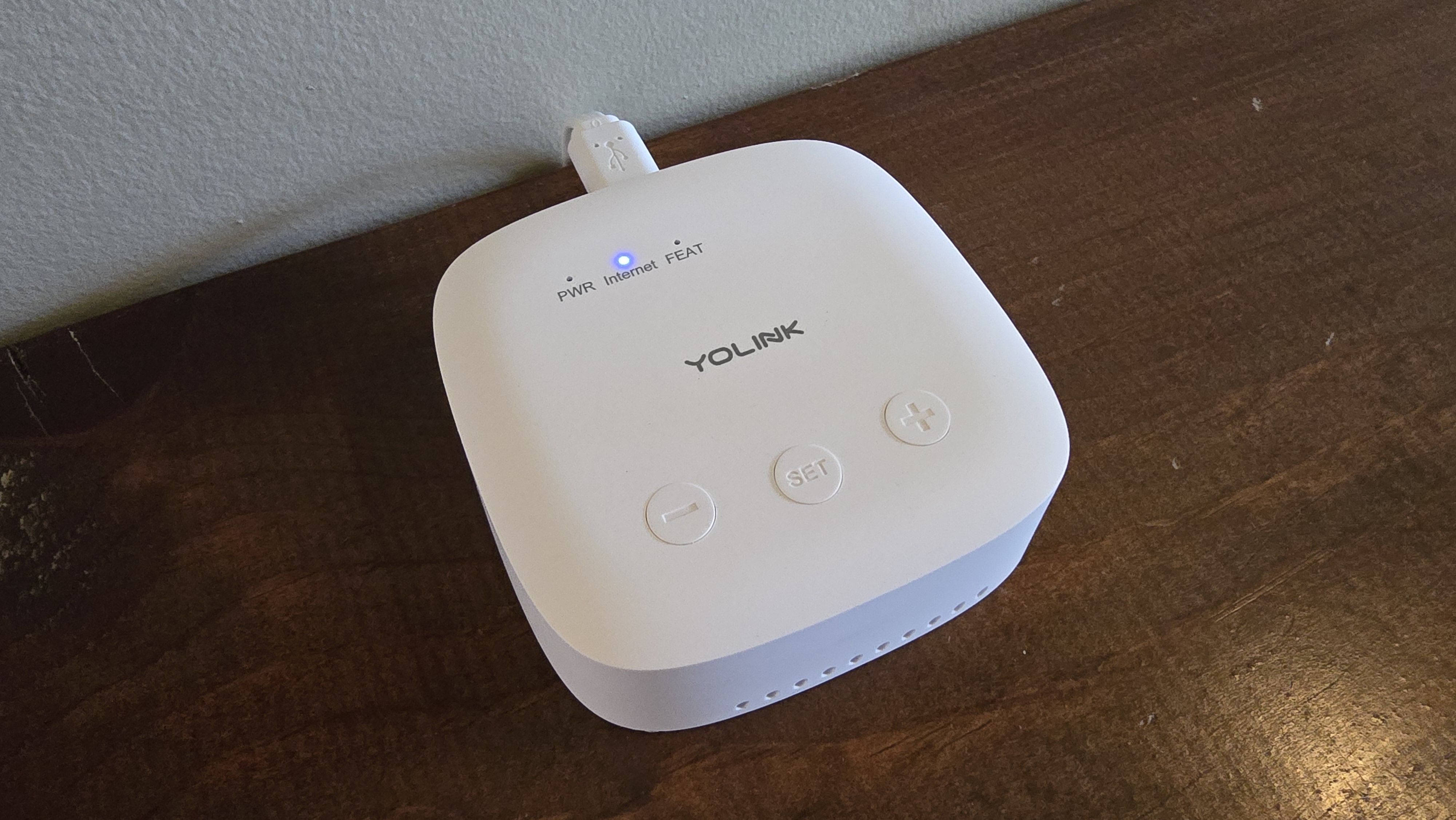

YoLink SpeakerHub

Text-to-speech announcements (“Left door open!”, “Fridge temp high!”).

YoLink store Amazon

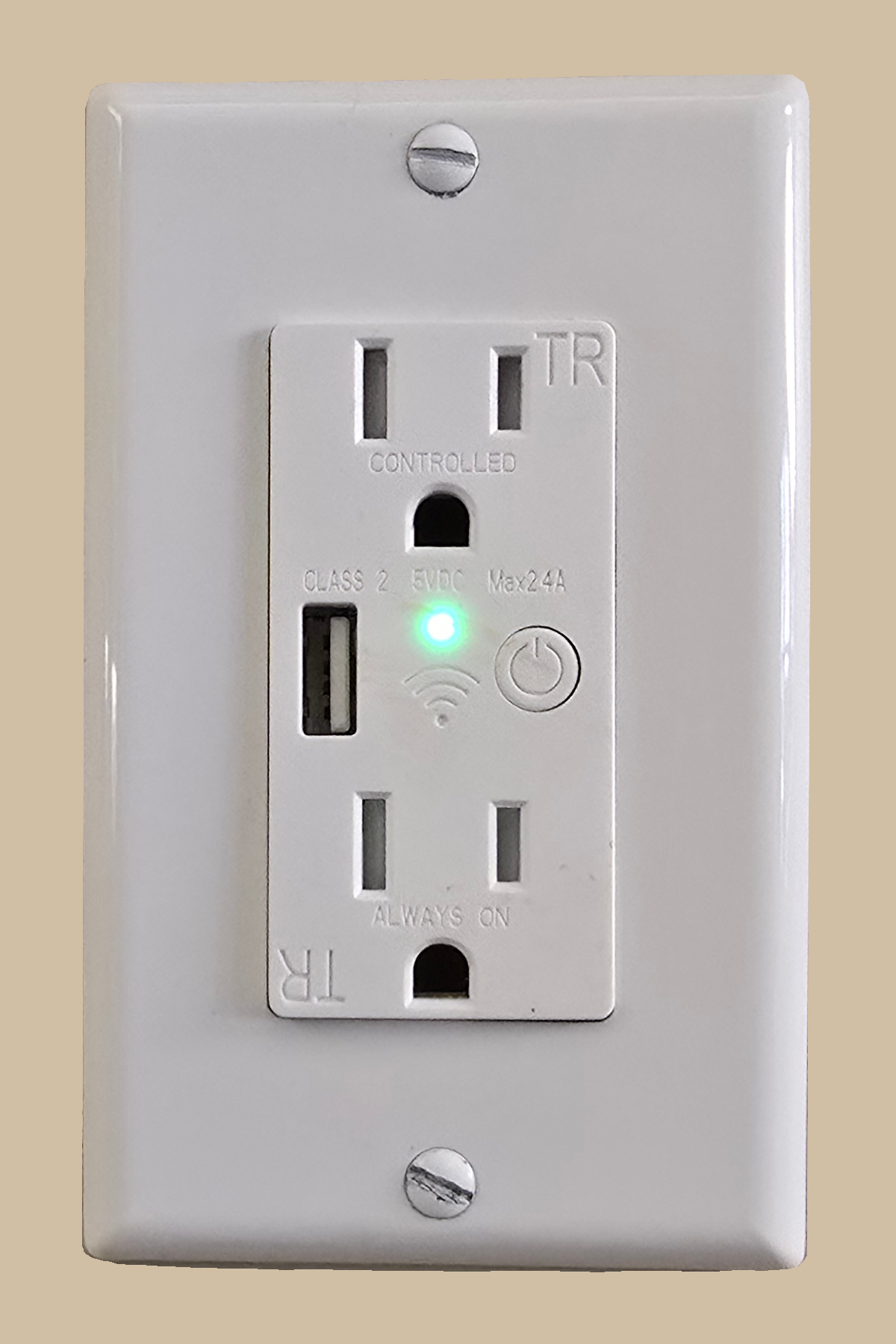

YoLink Smart Wall Outlet

Lets the system safely power-cycle the refrigerator (off → 20 s → on).

YoLink store Amazon

YoLink Smart Wireless Thermometer

Monitors internal temperature 24/7; triggers alert & reset if too warm.

YoLink store Amazon

YoLink Door & Window Sensors (x2 for French doors)

Alerts if a door is left open > 10–15 seconds.

YoLink store Amazon

Tip: You typically receive a SpeakerHub with some bundles. Make sure your order includes at least one SpeakerHub for audible alerts.

Hardware setup

Install the YoLink X3 Hub near your router. Follow the YoLink app to add it to your account.
Plug the SpeakerHub into a central outlet where you’ll hear it.

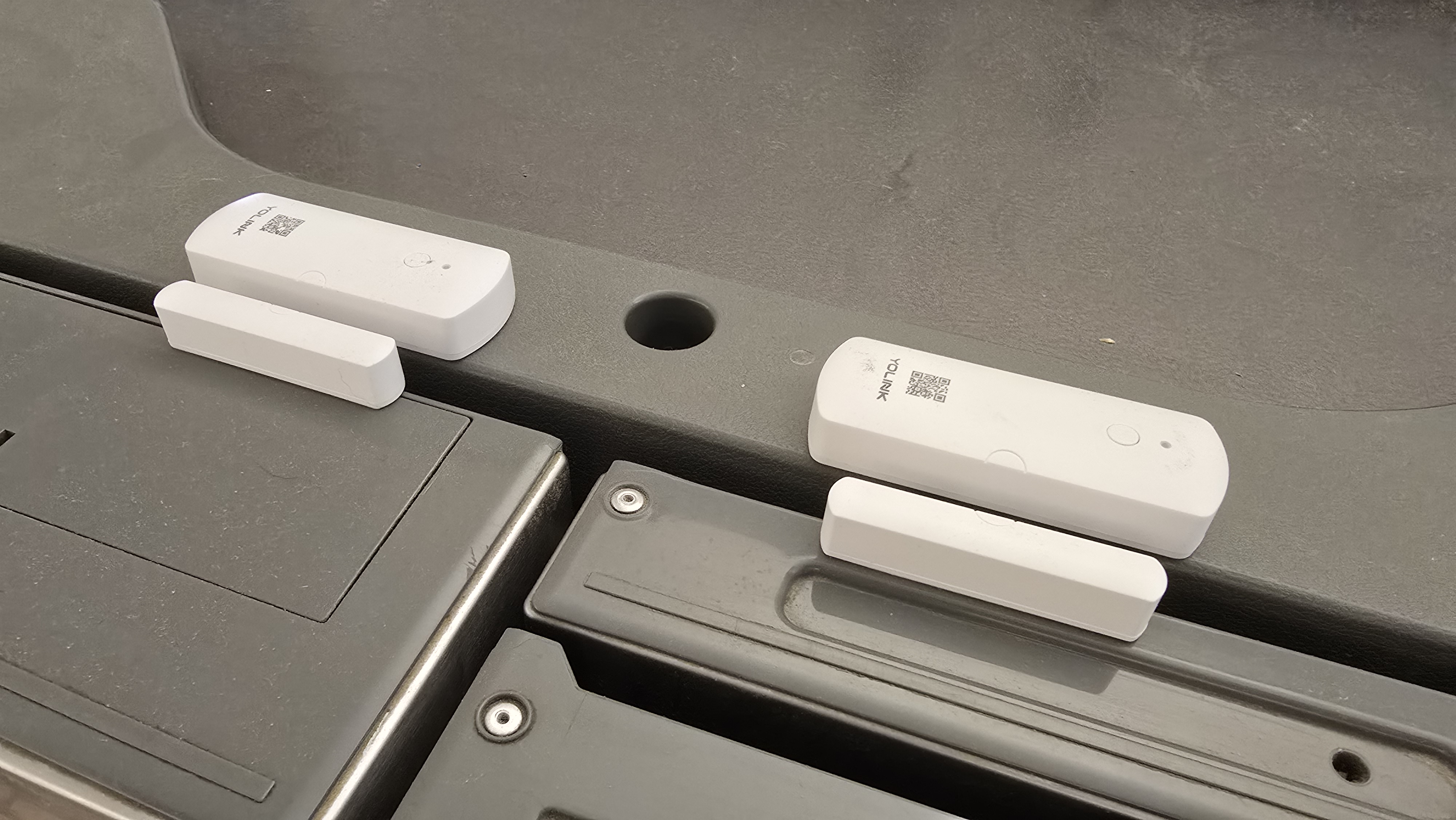

Install two Door Sensors (left & right doors). Mount the sensor body on the frame and the magnet on the door so the gap lines up when closed.

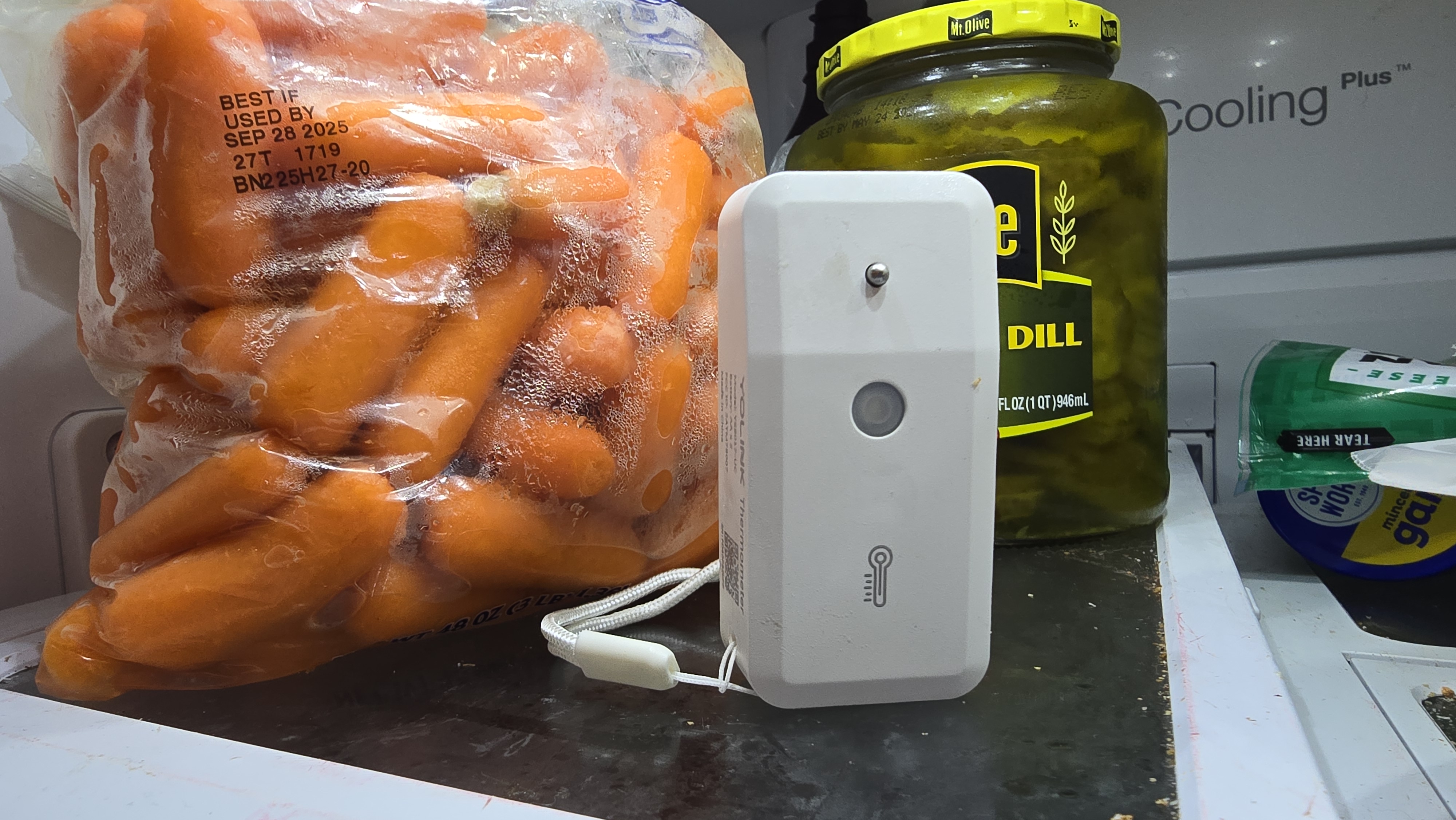

Place the Wireless Thermometer inside the refrigerator (mid-shelf center is a good average point; avoid air vents).

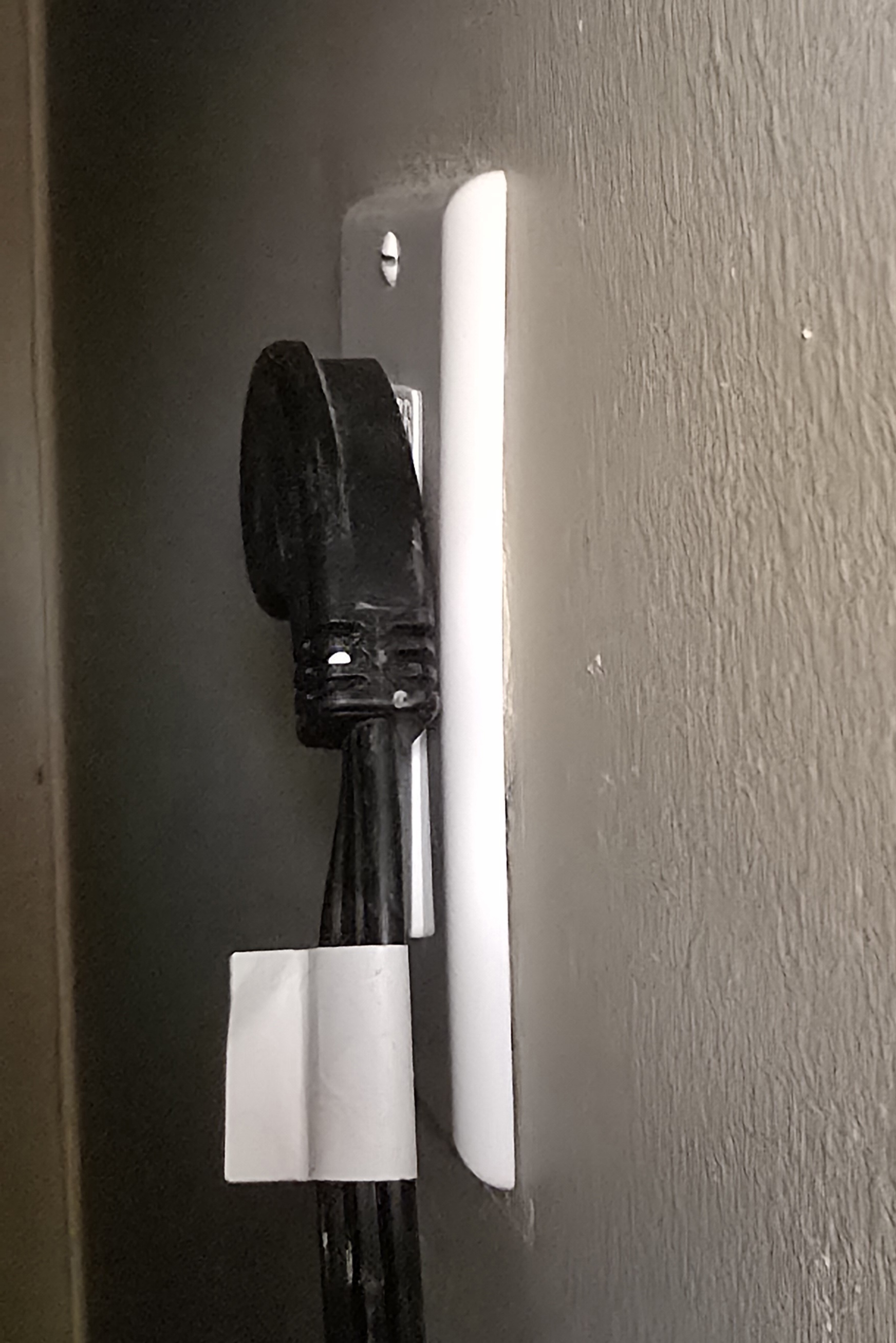

Unplug the refrigerator, plug the Smart Wall Outlet into the wall, then plug the refrigerator into the outlet. Tuck safely behind the fridge.

Safety: Fridges draw high inrush currents. Use a grounded outlet and never exceed the smart outlet’s rated load. If unsure, consult an electrician.

Door & temperature alerts

A. Door-Left-Open voice alerts

In the YoLink app, add each Door Sensor.
Create an Automation: IF Door Left is open for 10–15 seconds, THEN SpeakerHub → Announce: “Fridge left door is open” / “Fridge right door is open”.
(Optional) Also send a push notification to phones.

B. Temperature limits

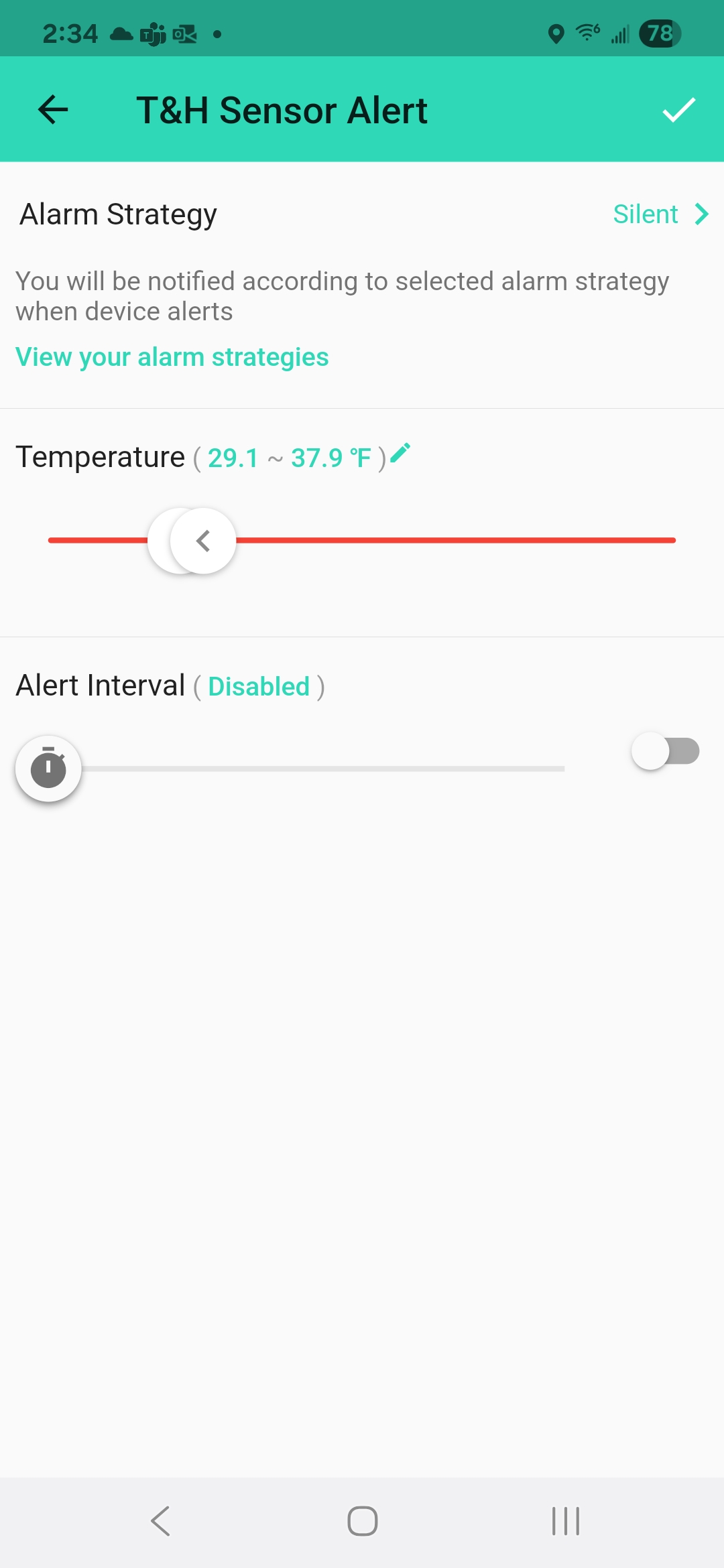

Set a safe range for the internal thermometer:

Lower bound: 30°F
Upper bound: 38°F (warn), with hard alert at 40°F.

Automation: auto reset when it warms up

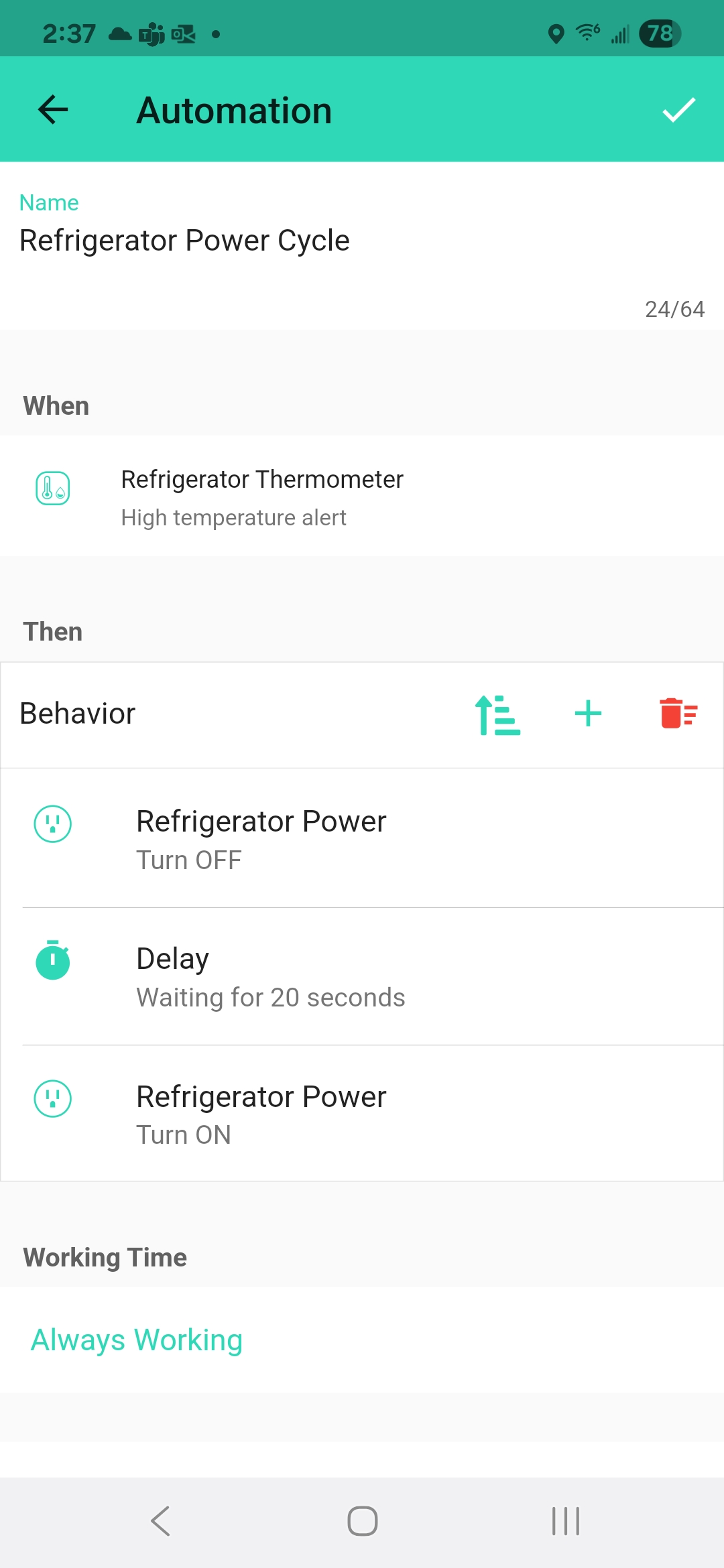

Scene 1: Fridge Power Reset

Create a Scene that turns the Smart Wall Outlet OFF.
Add a Delay of 20 seconds.
Add an action to turn the outlet ON.

Automation 1: Temp High → Reset + Announce

Trigger: Thermometer ≥ 38°F for 2 minutes (to ignore door-open momentary spikes).
Actions:
- Run Fridge Power Reset scene.
- SpeakerHub announcement: “Fridge temperature high. Power cycling now.”
- Push notification to phones.

Automation 2 (safety cap): No rapid repeats

Trigger: Thermometer ≥ 40°F for 30 minutes after a reset.
Actions: Notify phones + SpeakerHub. Do not power-cycle more than 2× per hour to avoid compressor stress.

Important: Frequent on/off cycling can harm a compressor. Enforce a minimum cool-down interval (e.g., 10 minutes) between resets.

How it works (flow)

Door opens → 10–15 s → Speaker says “Door open”

Temp probe monitors 24/7

If ≥ 38°F for 2 min → run Reset scene

Outlet OFF → 20 s → ON

Temp returns to 30–38°F ✅

IF door_open_duration >= 10s THEN
  speaker.announce("Fridge door is open")

IF temp >= 38°F FOR 2 minutes AND last_reset >= 10 minutes ago THEN
  outlet.off()
  wait(20 seconds)
  outlet.on()
  last_reset = now

IF temp >= 40°F FOR 30 minutes AFTER reset THEN
  notify("Fridge still above 40°F — check sensors/doors.")

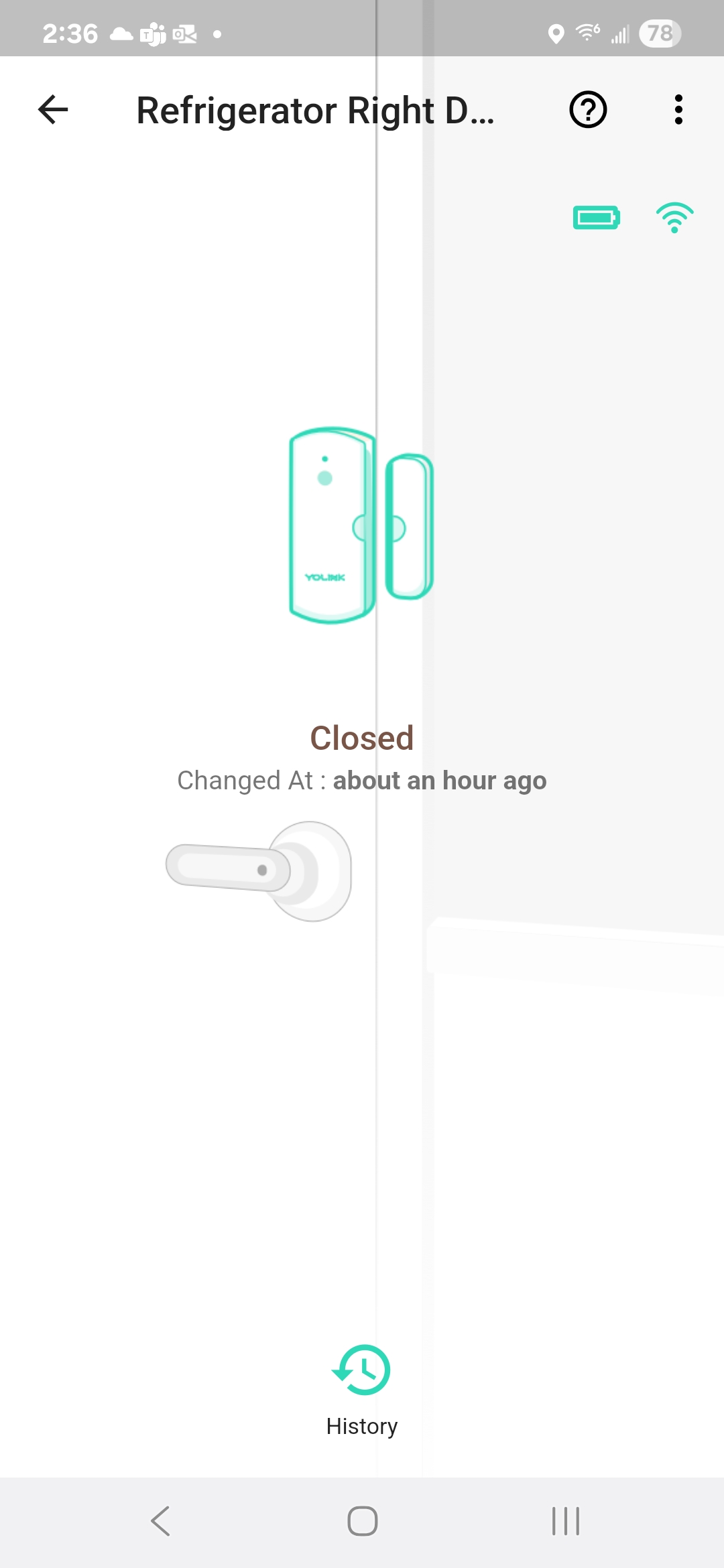

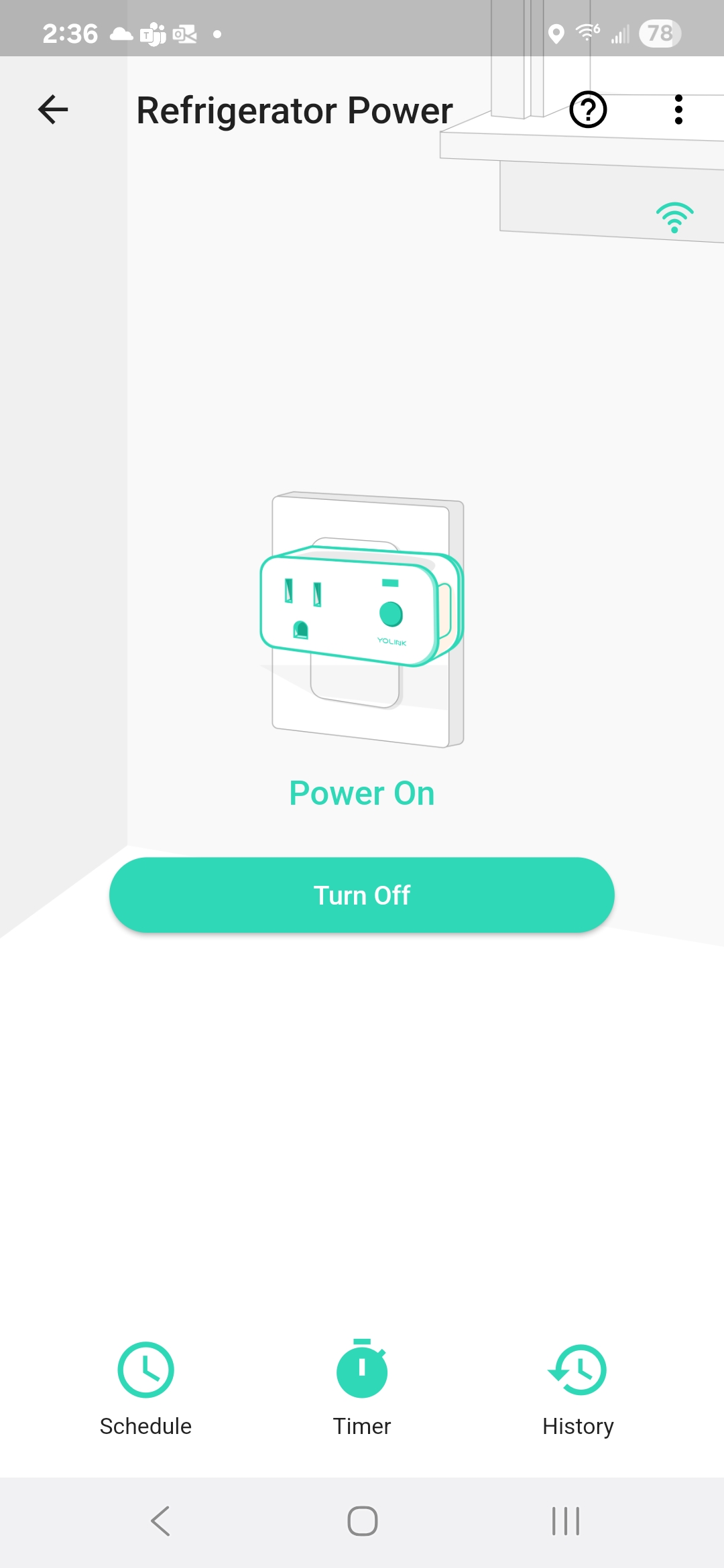

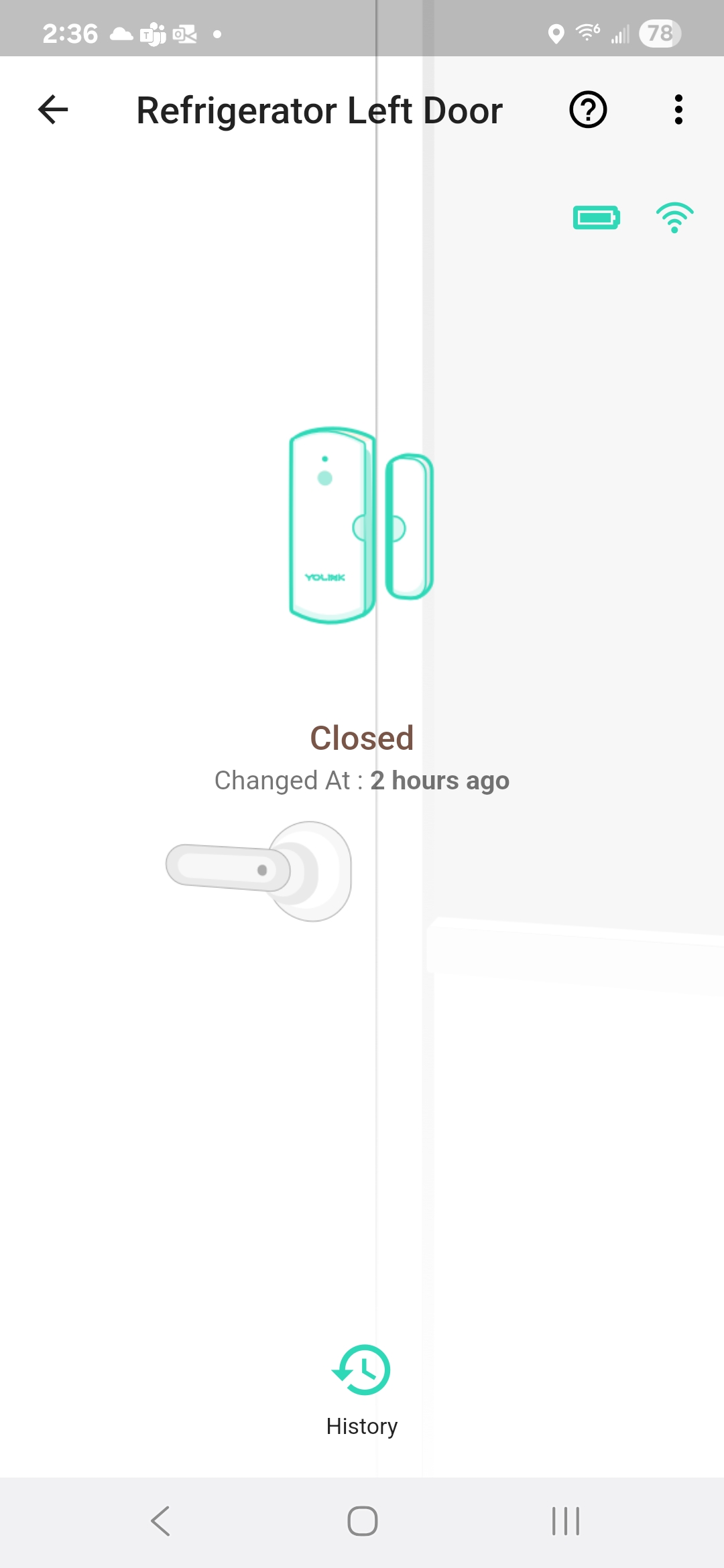

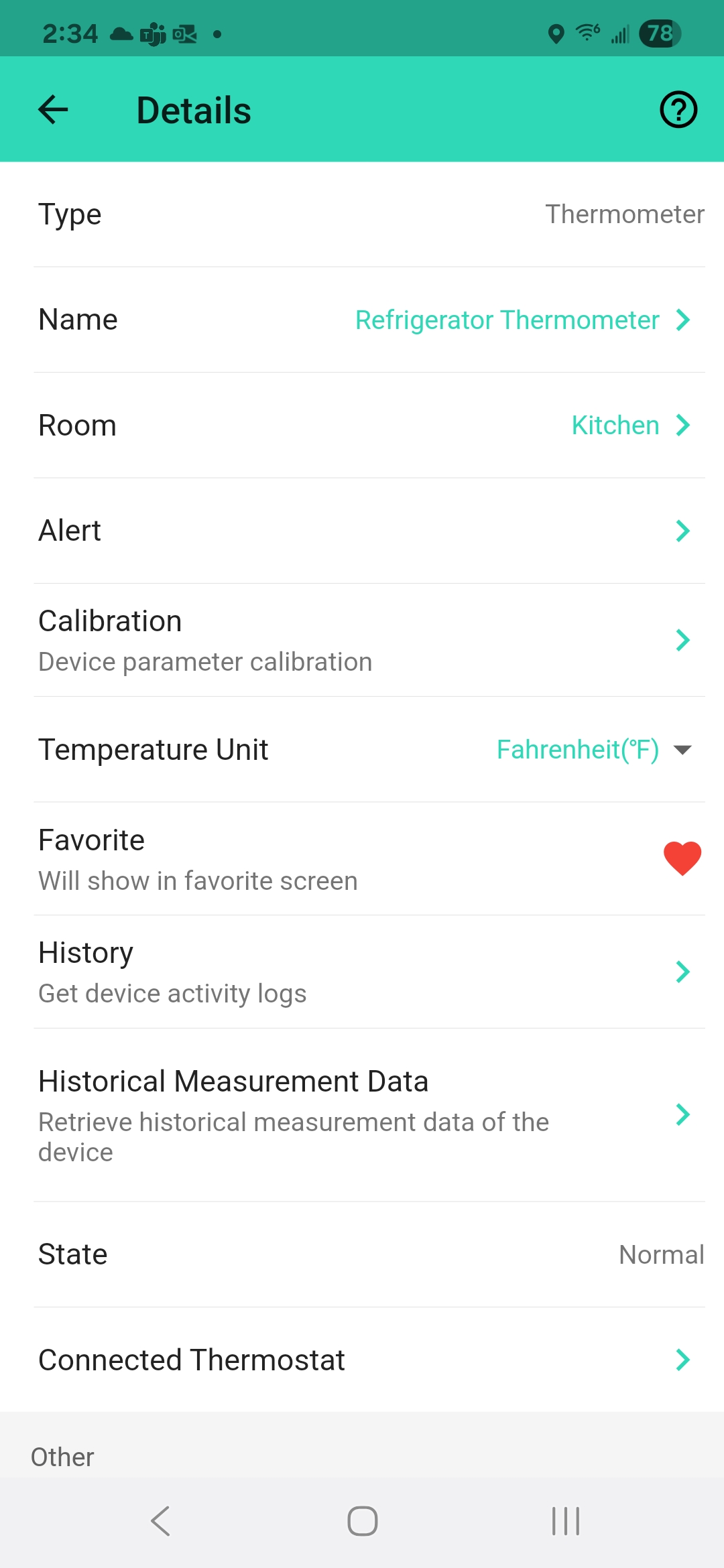

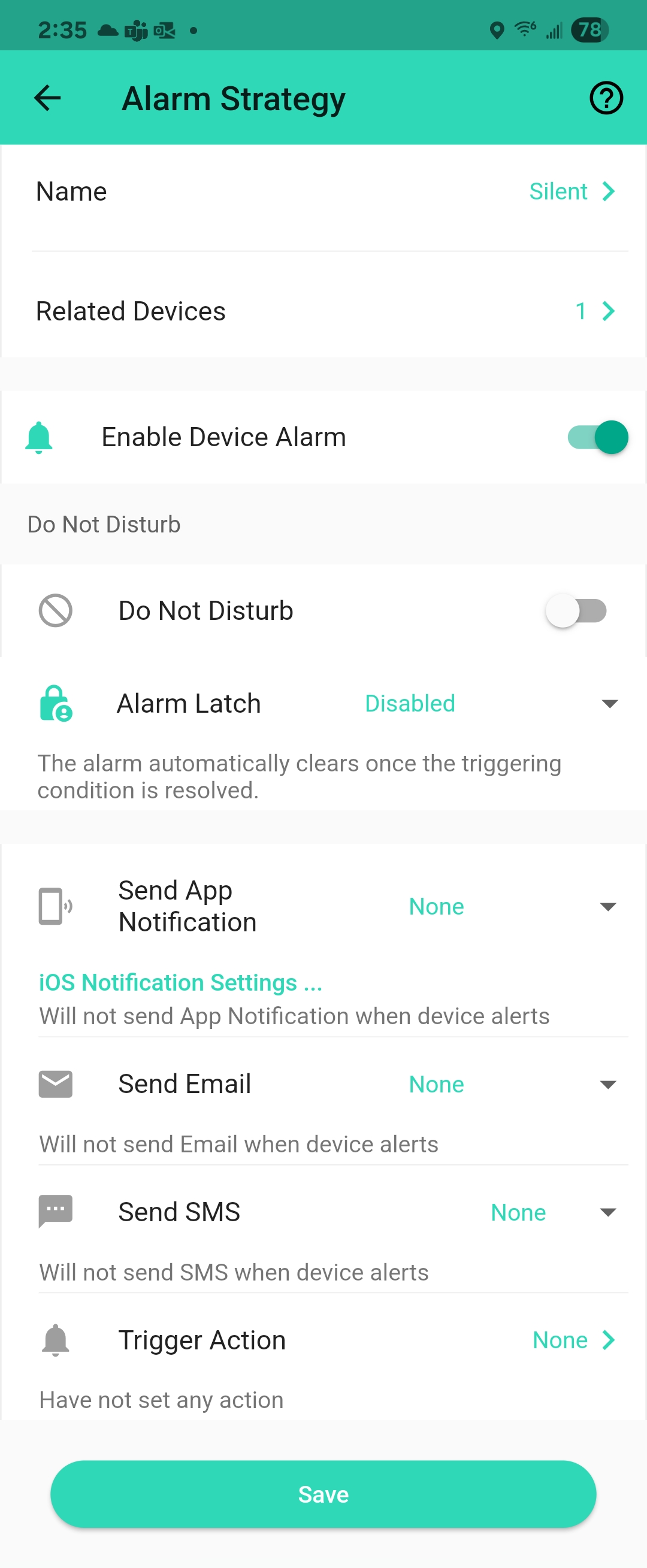

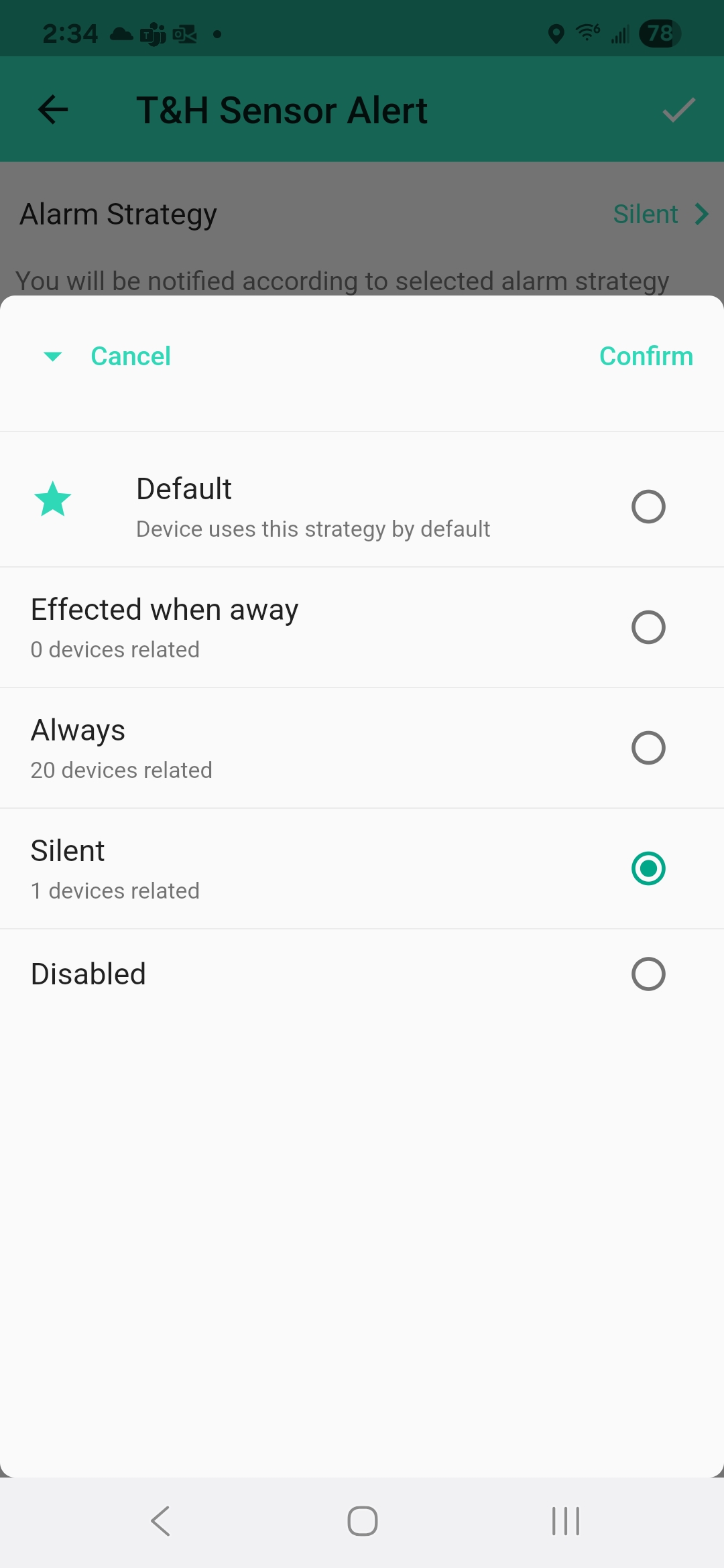

YoLink App Screenshots (Setup & Automations)

Tap any screenshot to enlarge. These are from the YoLink mobile app showing device setup, alerts, and automations for this project.

Testing checklist

Crack a door and wait 12 seconds → SpeakerHub should announce the open door.
Warm the probe slightly (in your hand) to nudge above 38°F → after 2 minutes, you should hear the “Temp high” announcement and the outlet should reset power (listen for fridge relay/fans to stop, then start).

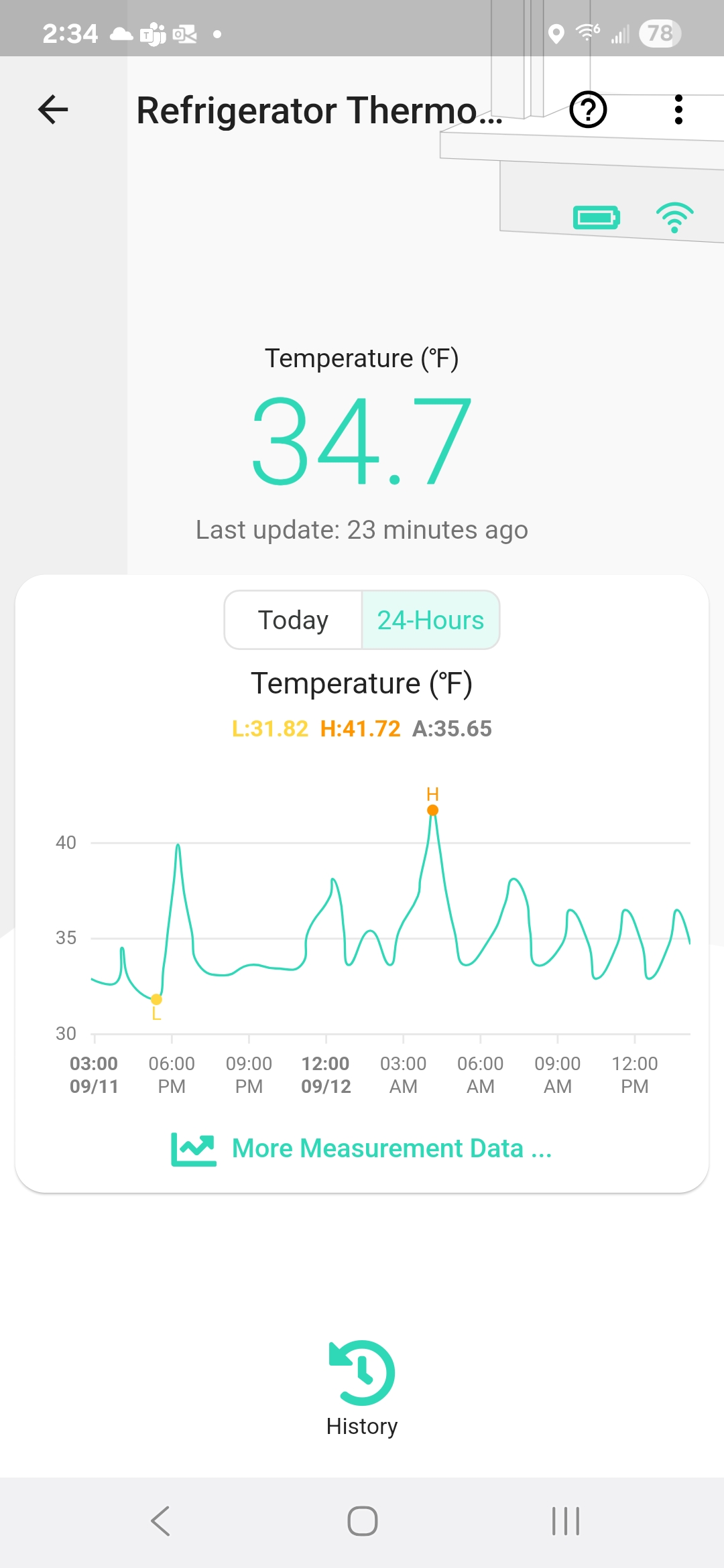

Verify the app graph shows temps returning to the 30–38°F band.

Troubleshooting

No announcements? Confirm SpeakerHub is online and assigned to the automations.
Outlet doesn’t toggle? Check load rating and that the fridge is actually plugged into the YoLink outlet.
Too many resets? Increase the trigger duration (e.g., 5 minutes) and add a longer minimum interval between resets.
Still warming past 40°F? You may have a failing control board or compressor—use alerts to save food and schedule service.

Your install photos

Drop in your pictures below (door sensors, thermometer placement, outlet install, hub locations). They’ll render in a simple grid for sharing or printing.

📷 Add Photos

FAQ & Notes

Is power-cycling safe for a refrigerator?

Occasional resets are fine; frequent cycling is not. That’s why this guide enforces delays and limits. If you need many resets, service the appliance.

Where should I mount the thermometer?

Middle shelf, center area, away from vents. Consider a second probe in the freezer for complete coverage.

What temp limits should I use?

Common practice is 30–38°F for the fridge compartment. Food safety guidance often flags ≥ 40°F as the danger zone.
